1-L PoA Sa
1-L PoA Sa
Door model available in the following structures
Inward opening structure
Other structures

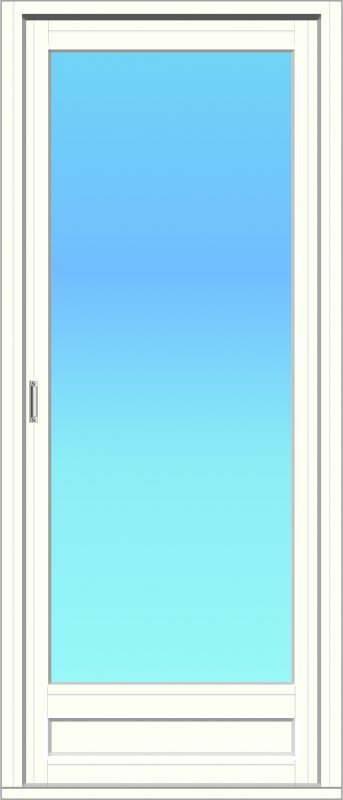

Inward opening structure
Glass openings: 12M, 14M, 16M, 18M, fully glazed and optional glass height
Technical information

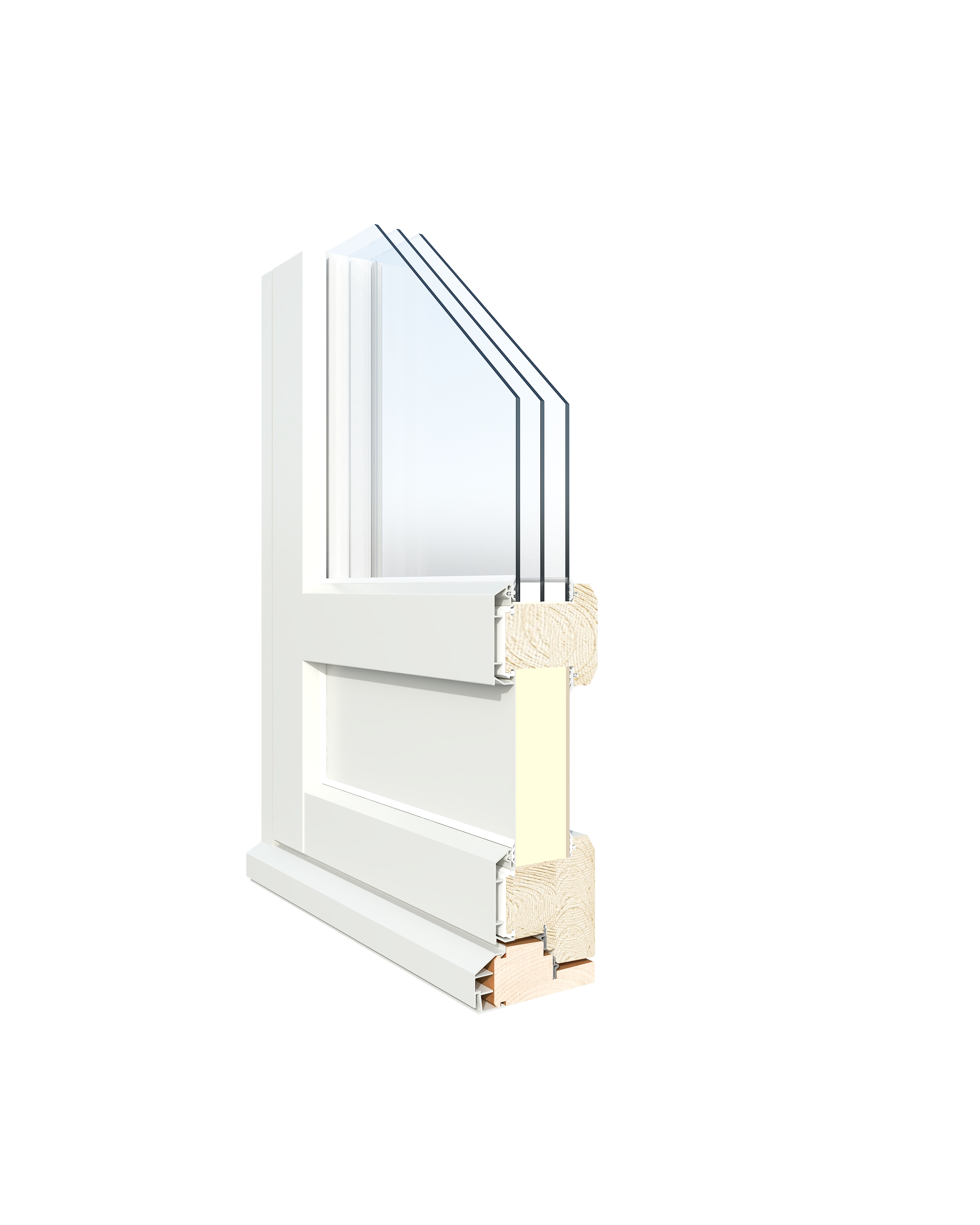

| Door leaf: | Aluminium-coated, framed door leaf. Total thickness of door leaf 97mm. Exterior aluminium-coated, interior pine profile, infill HDF board. | ||||||
| Hinge: | Adjustable burglary resistant hinges Abloy 3248, 3-4pcs | ||||||
| Lock: | Espagnolette Fix 896F + hold-open device Fix 150, 3 pcs Abloy 62R Fe/Zn striker plate | ||||||
| Seal: | Double seal. Grey 10mm silicone seal in the door leaf and the frame | ||||||
| Insulation: | Polyurethane insulation 48mm. | ||||||
Glazing | 3K4+ 4sel+ 4sel- 20+ argon |
Glazing M16-M18< : | 3K6+ +4sel+ 6sel- 18+ argon |
Frame: | Knotless finger-jointed pine frame 56 x 115mm |
Threshold: | Lamella glued birch threshold 45 x 115 mm. |
|
