1-L PoA
1-L PoA
Door model available in the following structures

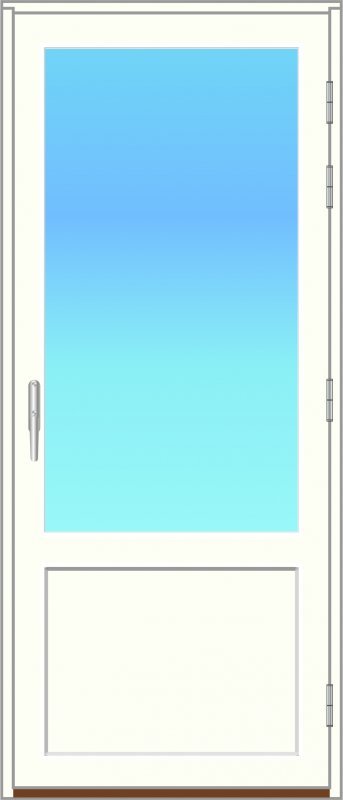

Outward opening structure
Other structures
Outward opening structure
Glass openings: 12M, 14M, 16M, 18M, fully glazed and optional glass height

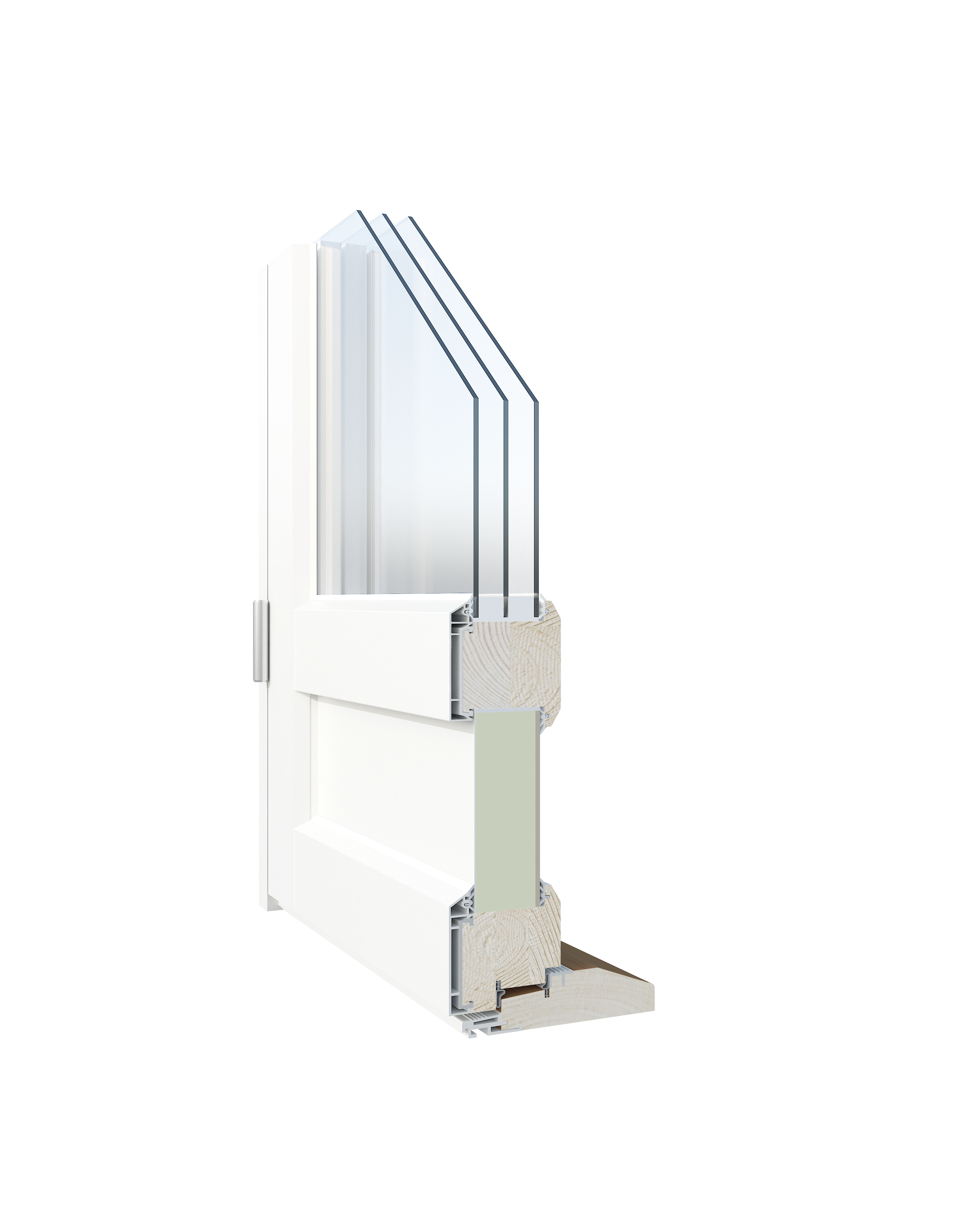

Technical information
| Door leaf: | Aluminium-coated, framed door leaf. Total thickness of door leaf 90mm. Exterior aluminium-coated, interior pine profile, infill hard board. | ||||||
| Hinge: | Adjustable burglary resistant hinges Abloy 3248, 3-4pcs | ||||||
| Lock: | Espagnolette Fix 896F + hold-open device Fix 150, width adjustable Edux striker plate | ||||||
| Seal: | Double seal. Grey 10mm silicone seal in the door leaf and the frame | ||||||
| Insulation: | Polyurethane insulation 50mm. | ||||||
Glazing | 3K4+ 4sel+ 4sel- 20+ argon |
Glazing M16-M18< : | 3K6+ +4sel+ 6sel- 18+ argon |
Frame: | Glued, knotless pine frame 42 x 131/170/210mm |
Threshold: | Lacquered oak threshold 38 x 121/160/200 with aluminium threshold plate. |
|
